tl;dr: in the first year of medical school, I built an application that helps fellow students and myself with studying anatomy. The answers of the last exam, submitted by students while revising, have been visualized with Gource. Please check out the YouTube video for the result: Anatomy visualization

Introduction to the application

For medical students it is inevitable: you have to know all the anatomical terms by heart. The task is easy, but the amount of structures one has to learn is quite intimidating. I remember the feelings of despair that arose while staring at the latin words in the anatomy book. After one brave attempt, my attention span had decided: we needed a better way to study this (one that involves computers).

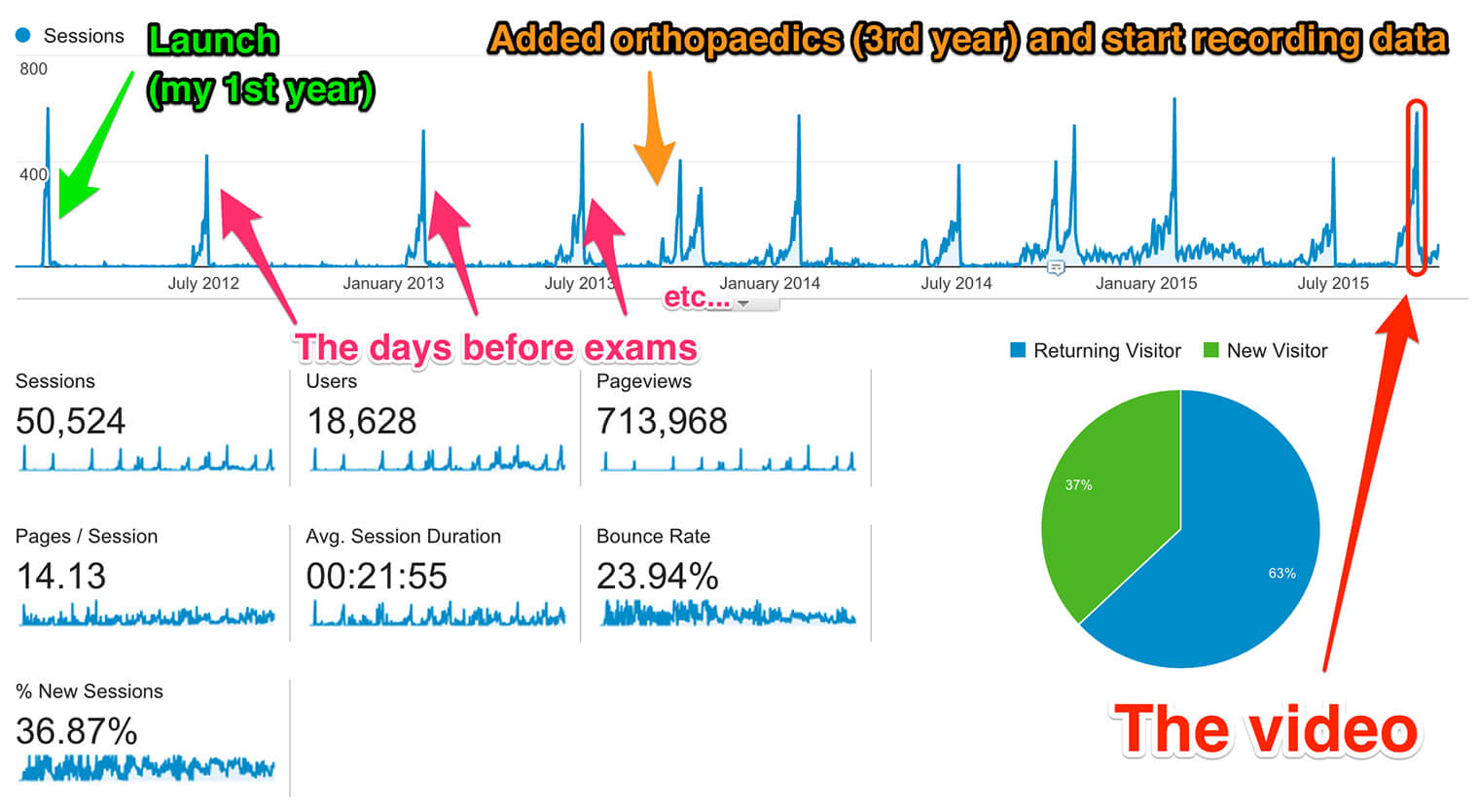

Anatomy analytics

Building the visualization

This is the exam_date that we will be using for this visualization:

2015-09-21 08:30:00 +02:00

Retrieving the answers

Anatomy visualization answers

We use one big PostgreSQL query that yields all the answers from the timeframe in the right format. No scripting needed!

-- We use trigram similarity to determine answer correctness

  translated_categories AS (
      CASE name
        WHEN 'Bovenarm' THEN 'Upper arm'
        WHEN 'Bovenbeen' THEN 'Upper leg'
        WHEN 'Elleboog' THEN 'Elbow'
        WHEN 'Enkel' THEN 'Ankle'
        WHEN 'Hals' THEN 'Neck'
        WHEN 'Heupgewricht' THEN 'Hip joint'
        WHEN 'Kniegewricht' THEN 'Knee joint'
        WHEN 'Onderarm' THEN 'Lower arm'
        WHEN 'Onderbeen' THEN 'Lower leg'
        WHEN 'Pols' THEN 'Wrist'
        WHEN 'Schouder' THEN 'Shoulder'
        WHEN 'Voet' THEN 'Foot'
        ELSE name
      END AS name
    FROM categories
  answer_colors AS (
      step::float / 10 AS similarity,
      CASE step
        WHEN 10 THEN '00FF00' -- Green: 100% correct answer
        WHEN 9 THEN '32FF00'
        WHEN 8 THEN '65FF00'
        WHEN 7 THEN '99FF00'
        WHEN 6 THEN 'CCFF00'
        WHEN 5 THEN 'FFFF00' -- Yellow: meh
        WHEN 4 THEN 'FFCC00'
        WHEN 3 THEN 'FF9900'
        WHEN 2 THEN 'FF6600'
        WHEN 1 THEN 'FF3200'
        WHEN 0 THEN 'FF0000' -- Red: wrong answer :-(
      END AS color
    FROM generate_series(10, 0, -1) step
  ranked_sessions AS (
      rank() OVER (ORDER BY min(created_at)) session_rank
    FROM answers
    WHERE session_id IS NOT NULL
      AND created_at
        BETWEEN timestamp :exam_date - interval '28 hours'
        AND :exam_date
    GROUP BY session_id
  plate_numbers AS (
      rank() OVER (PARTITION BY category_id ORDER BY
    FROM plates

  round(extract(epoch from answers.created_at)),
  -- Green 'beam' (A) when the answer is 100% correct
  CASE similarity(answers.input,
    WHEN 1 THEN 'A'
    ELSE 'M'
    rank() OVER (PARTITION BY structure_id ORDER BY answers)
FROM answers
JOIN structures ON = structure_id
JOIN answer_colors
  ON answer_colors.similarity =
     round(similarity(input,, 1)
JOIN plate_numbers ON = plate_id
JOIN ranked_sessions rs ON rs.session_id = answers.session_id
JOIN translated_categories ON = category_id
WHERE answers.created_at
  BETWEEN timestamp with time zone :exam_date - interval '28 hours'
  AND timestamp with time zone :exam_date
ORDER BY answers

Gource custom log format

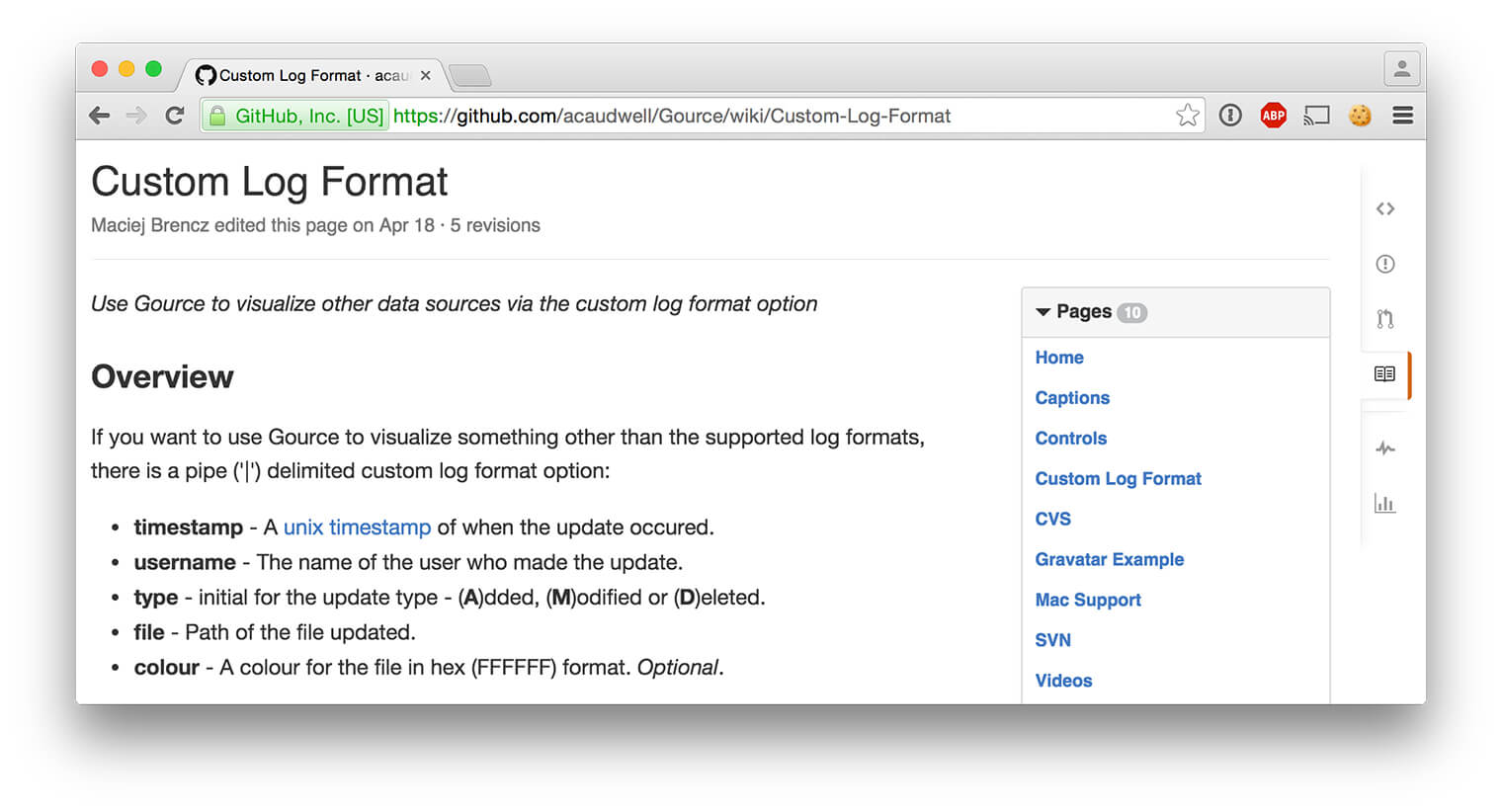

The results from the query seem to match Gource’s custom log format:

head -n 3 $ANSWERS_PATH
tail -n 3 $ANSWERS_PATH
1442729360|1|A|Knee joint/1/meniscus medialis/1|00FF00
1442729371|1|A|Knee joint/1/lig. cruciatum posterior/1|00FF00
1442729377|1|A|Knee joint/1/meniscus lateralis/1|00FF00

1442815272|271|M|Upper leg/4/m. biceps femoris caput longum/75|32FF00
1442815283|271|A|Upper leg/4/m. vastus lateralis/75|00FF00
1442815322|271|M|Upper leg/4/m. peroneus longus/71|FF3200

How many answers do we have in total?



Grouce captions

tail -n 3 $CAPTIONS_PATH
1442809800|2 hours until exam
1442813400|1 hour until exam
1442817000|Exam begins at 08:30...

User images

Retrieving user agent data per session (rank)

  rank() OVER (ORDER BY min(created_at)) session_rank,
  min(id) first_id,
  min(created_at) session_start
FROM answers
WHERE session_id IS NOT NULL
AND answers.created_at
  BETWEEN timestamp with time zone :exam_date - interval '28 hours'
  AND timestamp with time zone :exam_date
GROUP BY session_id, user_agent
1|Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_4) AppleWebKit/600.7.12 (KHTML, like Gecko) Version/8.0.7 Safari/600.7.12|1465360|2015-09-20 06:09:19.603637
2|Mozilla/5.0 (Windows NT 10.0; WOW64; rv:40.0) Gecko/20100101 Firefox/40.0|1465384|2015-09-20 06:19:55.221907
3|Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10_5) AppleWebKit/600.8.9 (KHTML, like Gecko) Version/8.0.8 Safari/600.8.9|1465408|2015-09-20 06:28:14.890441

Linking the sessions to browser icons

Gource user images

ls -l $USER_IMAGES_PATH/{1,2,3}.jpg | cut -d/ -f4-
1.jpg -> /Users/pepijn/Desktop/browser_icons/Safari.jpg
2.jpg -> /Users/pepijn/Desktop/browser_icons/Firefox.jpg
3.jpg -> /Users/pepijn/Desktop/browser_icons/Safari.jpg

Putting it all together

time (gource -1280x720 \
             --bloom-intensity 0.7 \
             --caption-duration 15 \
             --caption-file $CAPTIONS_PATH \
             --caption-size 50 \
             --dir-colour 00FFFF \
             --dir-name-depth 2 \
             --file-idle-time 10 \
             --hide filenames \
             --highlight-dirs \
             --max-file-lag -1 \
             --seconds-per-day 10000 \
             --stop-at-end \
             --title 'Answers from AMC/UvA (Amsterdam) 3rd year medical students revising online the day before their orthopaedics (course 3.1) anatomy exam' \
             --user-image-dir $USER_IMAGES_PATH \
             $ANSWERS_PATH 2>/dev/null) \
